Description

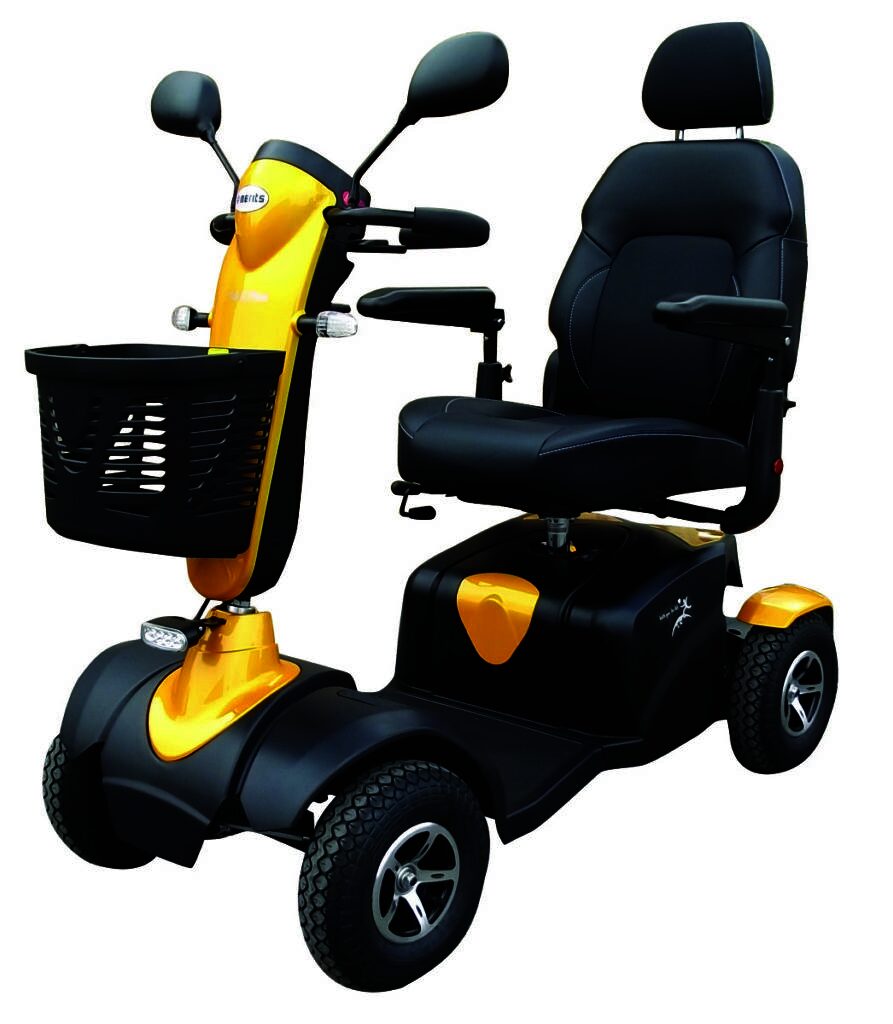

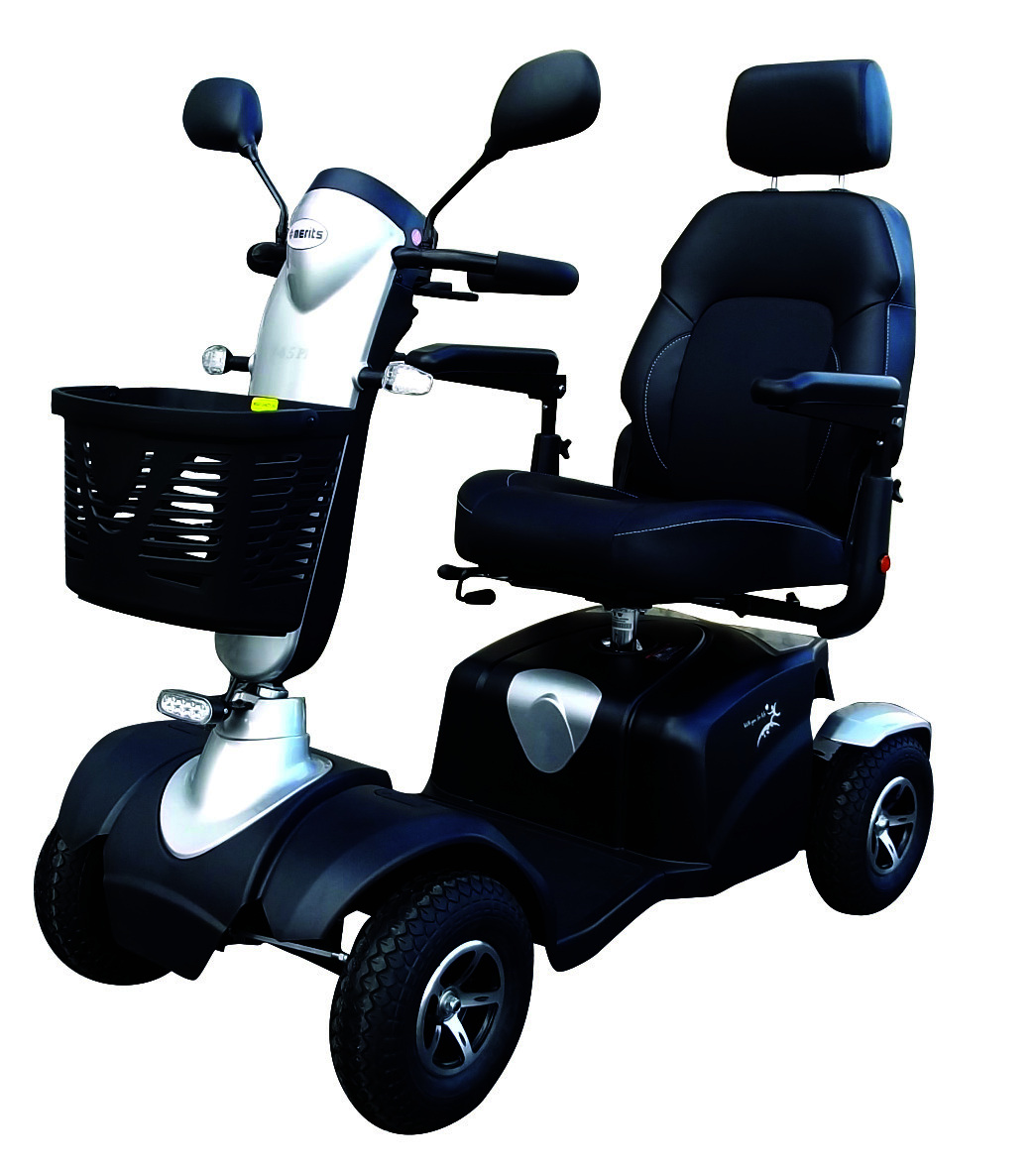

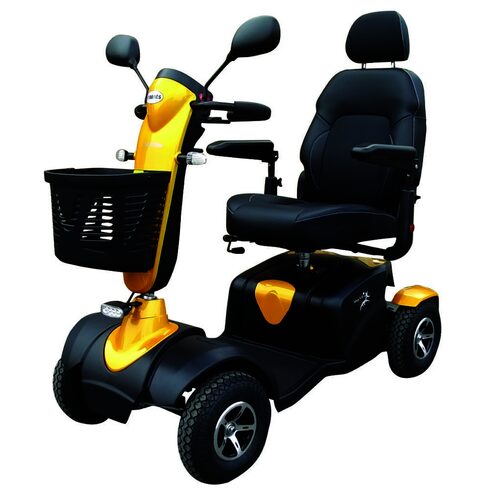

Features of 745 PLUS Mobility Scooter - Merits Australia

  • Elegant eye-catching design with an appealing range of contemporary colors.
  • This new design provides ample foot & leg space, including big battery capability.
  • Loop handles give comfortable operation of the finger or thumb throttle
  • Adjustable high-back contoured seat with easy slide and swivelling processes to ensure maximum convenience for the user
  • Infinite adjustment of the steering tiller makes it easy for everyone to find a comfortable place
  • High mount charger socket means easy access when charging
  • 11” wheels which provide extra ground clearance
  • Adjustable suspension to give maximum comfort
  • 4 pole motor delivering more power
  • Adjustable power-saving LED headlight, indicators front and rear, rear taillights and brake lights
  • Built-in speed reduction switch which is activated when turning to offer exceptional safety



Download the Technical Brochure - 745 PLUS Mobility Scooter - Merits Australia

Specifications

Technical Specs:

  • Max Speed: 10kph/6.25mph
  • Range: 30-40km/20-26mi
  • Turn Radius: 167cm/66``
  • Ground clearance: 10cm/3.9``
  • Motor: DC 24V, 350W (Rating)/ 1200W (Max)
  • Controller: S-Drive 90A
  • Battery: 12V/55 - 60A/H x 2pcs
  • Charger: 4A off-board
  • Gradient: 6°
  • Front wheel: 11`` Pneumatic tire
  • Rear wheel: 11`` Pneumatic tire
  • Brake: Intelligent, regenerative, electromagnetic brakes
SKU 19-0222
Brand Merits Australia
