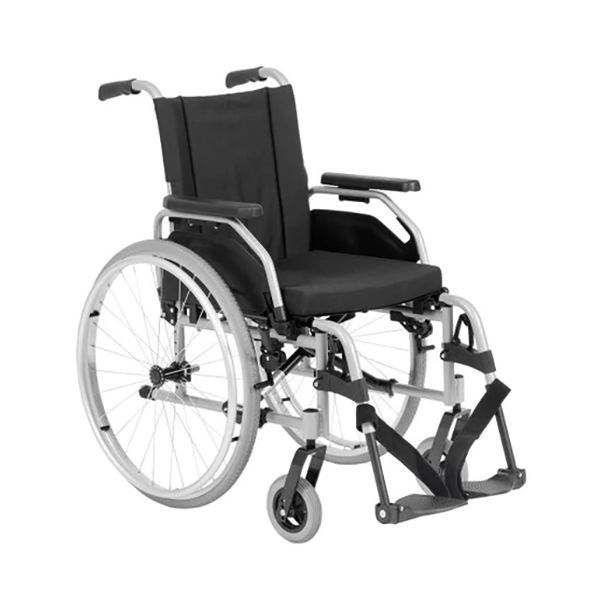

Otto Bock Start Intro Wheelchair
A manual wheelchair with a folding profiled aluminium pipe frame. It is self propelled using a rear wheel drive action and is suitable for adults. The wheelchair is available in various seat widths and depths with an adjustable back height. Seat height is
The Start M1 Intro is the entry level model of the Start series. It is the first one this product family, but with its design it is definitely more than just a basic chair. No steel components are used, and the frame design is identical to that of the other third-generation Start models. Fast availability is a matter of course with the Start M1 Intro. The Start M1 is the entry level of the Start series. However, a look at its appealing design shows that the lightweight wheelchair is far from just a basic chair. In combination with the black pads it is modern and unobtrusive at the same time. Of course, the M1 can be just a few steps to a narrow measure of fold and easy to transport. This way you are, wherever you go mobile. The hook and loop tape prevents the wheelchair from accidentally opening. Your accompanying person will benefit from the many advantages of the M1: The integrated tip-assist the tilting of the wheelchair easier to negotiate stairs. High security: even the basic features of the M1 is characterized by high functionality. The chair is equipped with a split, pivoted away footrests. In addition, the side panels are equipped with height-adjustable arm rests, so you can always comfortably support it. The M1 is special at the start that so that it can be adapted effortlessly to your personal body size and individual needs. As you select the correct seat width, we present the seat depth, seat height and a corresponding drop in default. If required, your rehab technician to change the settings with a few simple steps, so you are always optimally positioned and supported. The back height is 42.5 inches set fixed. 20 variants of the model are ready for delivery, the selection being made with a simplified order form. You just have to indicate the appropriate seat width and choose a variant, and the wheelchair will be delivered to you immediately.
- The patented wheel lock requires a minimum of actuating force.
- Rear wheels with quick-release axles make space-saving loading possible.
- The footrest holders can be swung away and removed.
- Individual, angle adjustable lip-up footrests.
- The tip-assist is integrated in the frame.
- The side panel can be turned to the rear and removed for transfer.
- Different height settings of the armrests are possible.
- Aluminium tube frame.
- Tip-assist integrated in the frame.
- Individual footrests, angle adjustable, plastic footplate.
- Swing-away footrest holders.
- Desk side panel with armrest, different height settings possible.
- Seat and back upholstery of black nylon.
- Rear wheels with quick-release axles.
- Wheel lock.
- Frame colour: silver metallic.
- 24 inch rear wheel with PU tyre.
|Seat Width||40.5cm - 50.5 cm|
|Seat Depth||Preset to 43cm, can also be set to 40cm or 46cm|
|Back Height||42.5cm (Standard back)
47.5cm (angle adjustable back)
|Front Seat Height||49cm|
|Seat Inclination||3 Degres|
|Lower leg Length||31cm - 47 cm|
|Maximum User Weight||125kg|
