Description

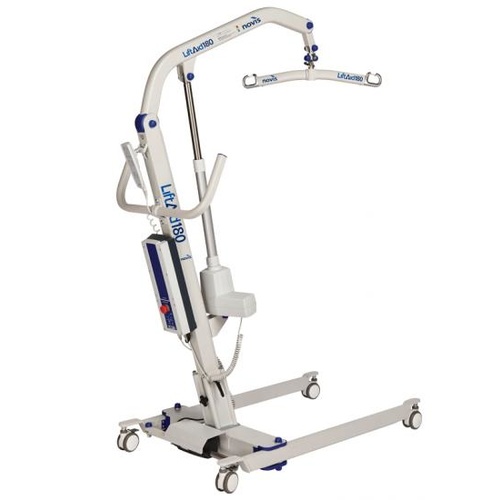

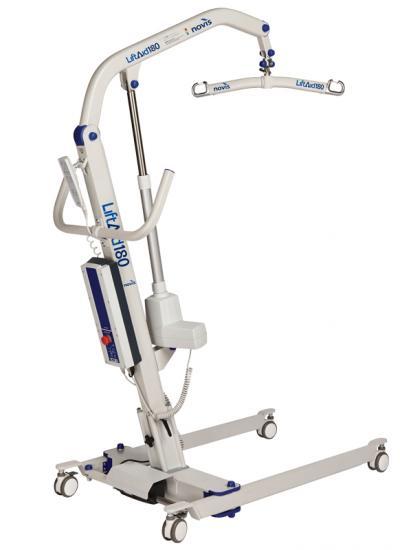

With low hoist lifting height and soft start/stop function, this product has been designed to provide patients and carers with optimum comfort, safety, and security.

Key features:

  • 3 height settings with tool-less adjustment quick release hook system for easy sling bar installation swivel style front and rear castors;
  • foot operated brake locks on rear electrically operated ‘U’ shaped base with wide flanged front legs for enhanced stability and access handheld controller with simple push-button operation;
  • includes overload indicator, battery charge, and service status indicators rechargeable battery featuring intelligent diagnostic system for battery level;

Service status and maximum overload emergency stop and manual emergency lowering device for optimum safety and control optional pivot frame provides enhanced patient positioning and comfort and an improved balance point compatible with a range of slings (including the ProSling Yoke, Pivot, and Disposable in sizes ranging from S to XXL)

Specifications

  • Maximum overall height: 2045mm
  • Maximum Yoke lift height: 1705mm - 1805mm
  • Width between legs 535mm - 1010mm
  • Base length 115mm
  • Under bed clearance 125mm
  • Product weight 35.3kg
  • User Weight 180kg
  • ISO 10535: 2006
SKU 21-0104
