Now with a new intelligent monitoring system

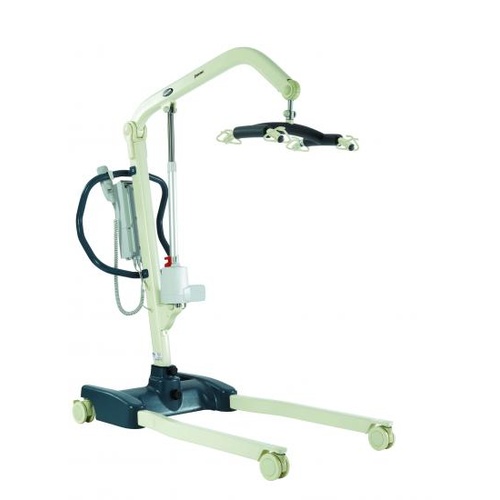

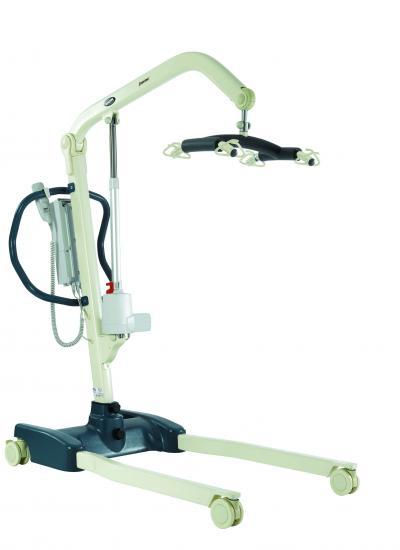

With its expansive, wide-opening base and high-lifting mechanism, Jasmine makes life easy for caregivers operating this new Invacare lift system.
The control box with the diagnostic system is an intelligent service monitoring system that enables a safe operating environment for the caregiver, whilst allowing maximum comfort for the client during each transfer.
Flexibility and Optimised Maneuverability The Invacare Jasmine is exceptionally mobile and easy to move around.
The wide-opening base allows easy access for a wheelchair or armchair, whilst the high lifting mechanism is essential for helping clients on and off high toilet chairs or examination couches.
Flexible and with optimized maneuverability, Jasmine covers all needs, at all times - for both the caregiver and the client.
Safety First, with an Intelligent Control Box Jasmine, secures the patient's need for a safe and comfortable lift with a control box with a diagnostic system: an intelligent service monitoring system that highlights the battery status and service condition of the actuator to ensure safe patient handling.
The control box provides a safe and comfortable lift for the client via 'soft start' and 'soft stop' button mechanisms.
Accessories for all situations Users can enjoy maximum flexibility with a range of spreader bars, pivot bars, and a very comfortable sling range that allows for individual adjustment of the transfer.
Head and leg clearance is sufficient to allow a patient to be easily rotated even when at maximum lift height. The lifter's range allows for easy lifting from the floor and at a height of 2000mm leaves a generous clearance over high beds or bath sides.
- Safe working load: 200kg
- Length of base: 109cm
- Total width closed (external measure): 69cm
- Total width open (internal measure): 105cm
- Total length: 134cm
- Lifting range (from sling attach point): 154cm - 192cm
- Battery Usage: 40 cycles
- Base height (top of legs): 212cm
- Total weight: 43kg
- Electric emergency lowering: Yes (up and down)
- Castors: Dual 100mm
- Charging External: Standard
